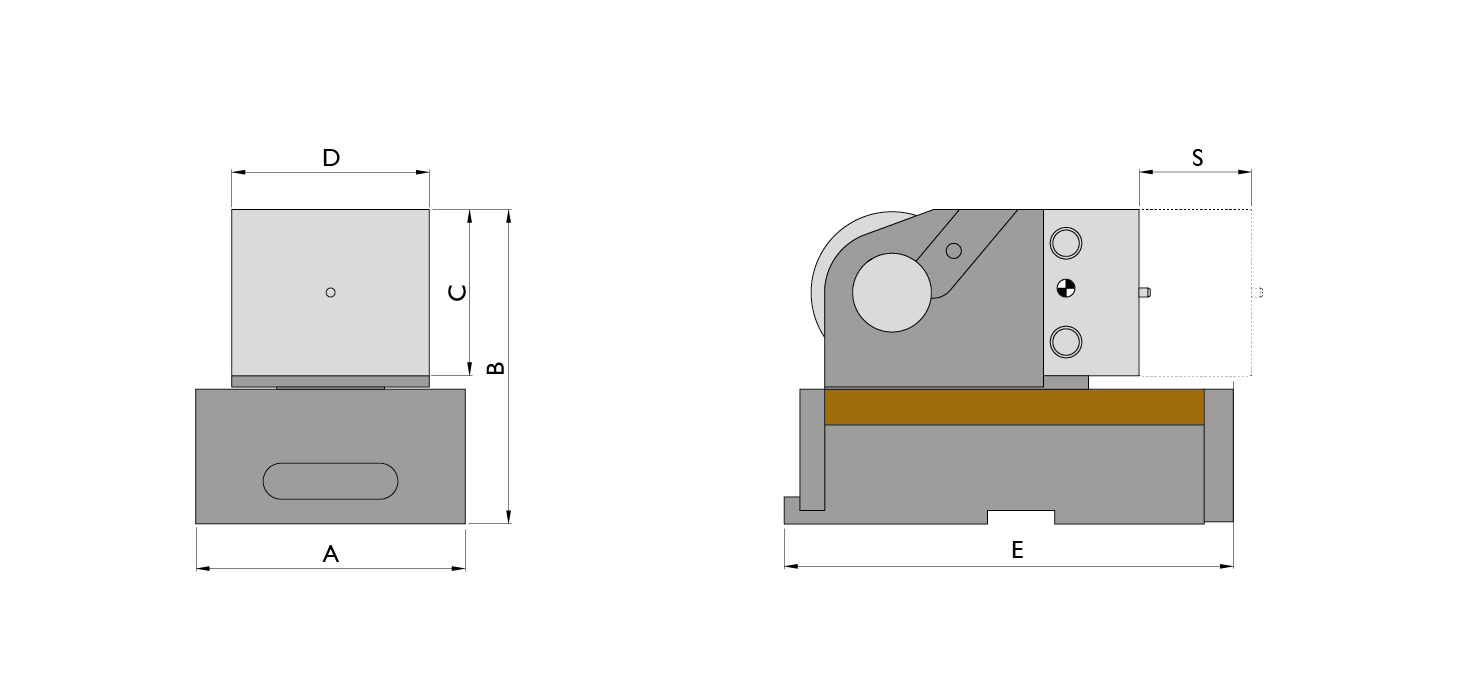

Order No.	Working force (daN)	Stroke (mm)	Spring force (daN)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	PDF	3D
CRCS-02000-22	2000	50	180	75	85	50	50	115
CRCS-02000-35	2000	80	190	75	85	50	50	136
CRCS-03000-50	3000	50	450	100	117	63	68	200
CRCS-03000-80	3000	80	450	100	117	63	68	230
CRCS-03000-100	3000	100	540	100	117	63	68	260
CRCS-05000-50	5000	50	450	120	140	74	88	200
CRCS-05000-80	5000	80	450	120	140	74	88	230
CRCS-05000-100	5000	100	540	120	140	74	88	260
CRCS-15000-50	15000	50	910	170	165	92	132	220
CRCS-15000-80	15000	80	910	170	165	92	132	250
CRCS-15000-100	15000	100	710	170	165	92	132	270
CRCS-20000-50	20000	50	1200	240	205	110	196	250
CRCS-20000-80	20000	80	1200	240	205	110	196	280
CRCS-20000-100	20000	100	1200	240	205	110	196	300
