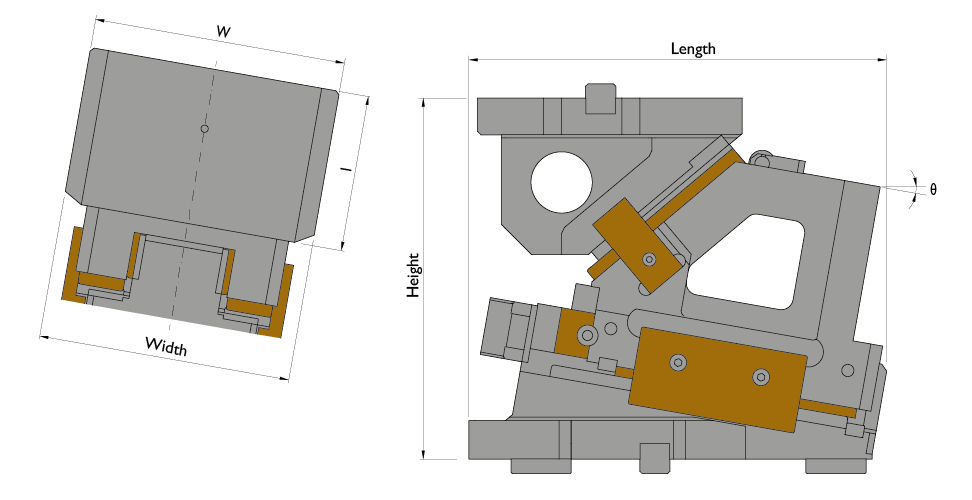

Order No.	W (mm)	θ (º)	Stroke (mm)	Working force (Tnf)	Spring force (kgf)	I (mm)	Width (mm)	Height (mm)	Length (mm)	PDF	3D
CDCN-70-00-45	70	0	45	7	280	90	70	225	290
CDCN-70-05-45	70	5	45	7	280	90	70	225	290
CDCN-70-10-45	70	10	45	7	280	90	70	225	290
CDCN-70-15-45	70	15	45	7	280	90	70	225	292.47
CDCN-70-20-45	70	20	45	7	280	90	70	225	300.69
CDCN-100-00-55	100	0	55	12	560	100	100	275	330
CDCN-100-05-55	100	5	55	12	560	100	100	275	330
CDCN-100-10-55	100	10	55	12	560	100	100	275	330
CDCN-100-15-55	100	15	55	12	560	100	100	275	337.47
CDCN-100-20-55	100	20	55	12	560	100	100	275	350.69
CDCN-210-00-60	210	0	60	20	540	130	230	300	385
CDCN-210-05-60	210	5	60	20	540	130	230	300	347.98
CDCN-210-10-60	210	10	60	20	540	130	230	300	355.91
CDCN-210-15-60	210	15	60	20	540	130	230	300	363.35
CDCN-210-20-60	210	20	60	20	540	130	230	300	377.82
CDCN-300-00-60	300	0	60	37	1120	160	350	375	390
CDCN-300-05-60	300	5	60	37	1120	160	350	375	389.74
CDCN-300-10-60	300	10	60	37	1120	160	350	375	389.41
CDCN-300-15-60	300	15	6	37	1120	160	350	375	407,23
CDCN-300-20-60	300	20	60	37	1120	160	350	375	422.95
