Order No. W

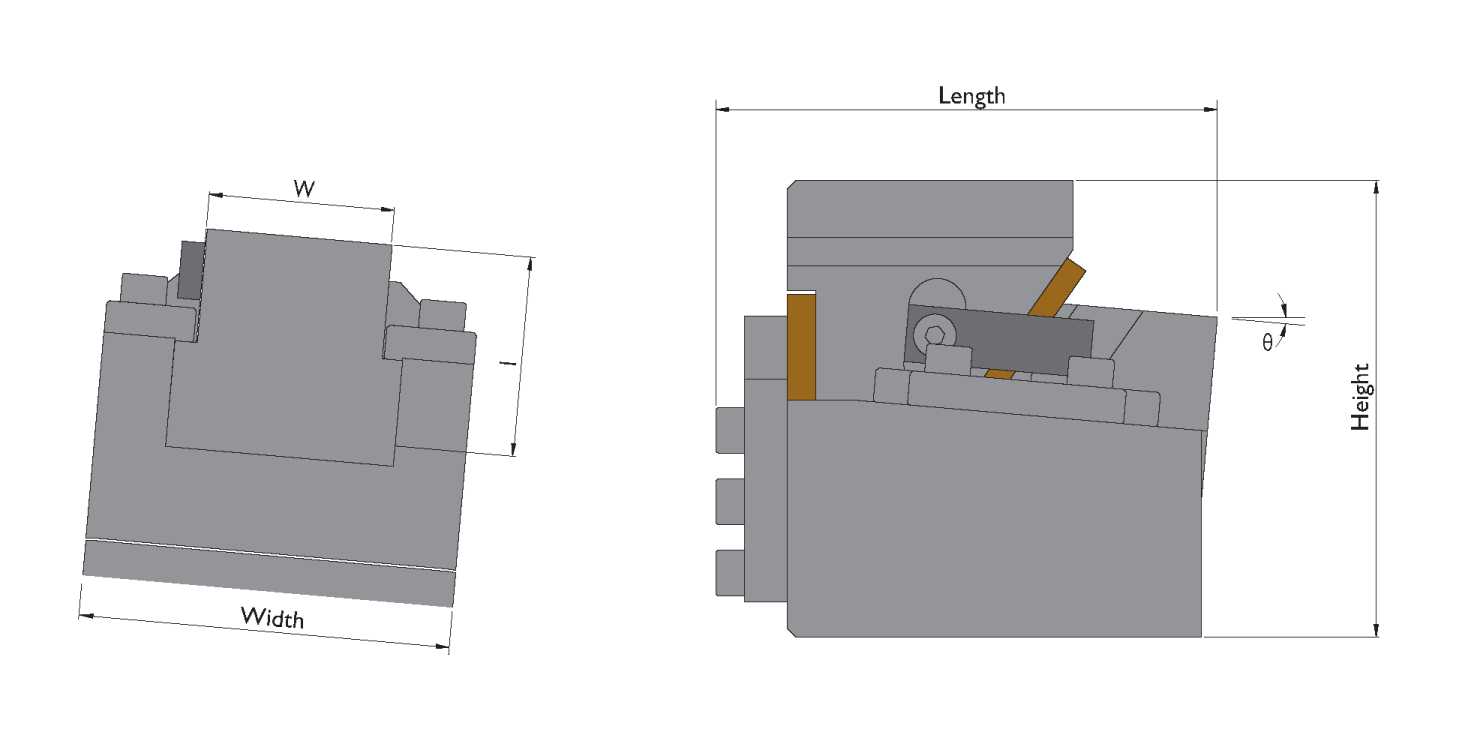

(mm)		 θ
(º)		 Stroke
(mm)		 Working force
(Tnf)		 Spring force
(kgf)		 I
(mm)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 PDF 3D
CDCA-52-00-25 52 0 25 1 - 3 560 65 98 140 138
CDCA-52-00-40 52 0 40 1 - 3 560 65 98 140 153
CDCA-52-00-60 52 0 60 1 - 3 560 65 98 140 198
CDCA-65-00-40 65 0 40 2 - 4 560 70 130 160 170
CDCA-65-00-60 65 0 60 2 - 4 560 70 130 160 215
CDCA-65-05-45 65 5 45 2 - 4 560 70 130 160 175.55
CDCA-65-05-70 65 5 70 2 - 4 560 70 130 170 220.38
CDCA-65-10-45 65 10 45 2 - 4 560 70 130 160 179.95
CDCA-65-10-70 65 10 70 2 - 4 560 70 130 170 224.27
CDCA-65-15-45 65 15 45 2 - 4 560 70 130 170 183.18
CDCA-65-15-70 65 15 70 2 - 4 560 70 130 170 226.64
CDCA-65-20-45 65 20 45 2 - 4 560 70 130 170 185.2
CDCA-65-20-70 65 20 70 2 - 4 560 70 130 170 227.48
CDCA-100-00-40 100 0 40 3 - 6 1120 100 175 200 217
CDCA-100-00-60 100 0 60 3 - 6 1120 100 175 200 237
CDCA-100-00-80 100 0 80 3 - 6 1120 100 175 200 277
CDCA-100-05-45 100 5 45 4 - 8 1120 90 175 200 199.22
CDCA-100-05-70 100 5 70 4 - 8 1120 90 175 200 234.08
CDCA-100-10-45 100 10 45 4 - 8 1120 90 175 200 205.12
CDCA-100-10-70 100 10 70 4 - 8 1120 90 175 200 239.59
CDCA-100-15-45 100 15 45 4 - 8 1120 90 175 200 209.67
CDCA-100-15-70 100 15 70 4 - 8 1120 90 175 200 243.48
CDCA-100-20-45 100 20 45 4 - 8 1120 90 175 200 212.83
CDCA-100-20-70 100 20 70 4 - 8 1120 90 175 200 245.72
CDCA-150-00-40 150 0 40 6 - 9 1080 100 260 220 226
CDCA-150-00-60 150 0 60 6 - 9 1080 100 260 220 246
CDCA-150-05-45 150 5 45 7 - 10 1080 100 260 220 229.01
CDCA-150-05-70 150 5 70 7 - 10 1080 100 260 220 253.92
CDCA-150-10-45 150 10 45 7 - 10 1080 100 260 220 235.55
CDCA-150-10-70 150 10 70 7 - 10 1080 100 260 220 260.17
CDCA-150-15-45 150 15 45 7 - 10 1080 100 260 220 240.58
CDCA-150-15-70 150 15 70 7 - 10 1080 100 260 230 264.73
CDCA-150-20-45 150 20 45 7 - 10 1080 100 260 220 244.05
CDCA-150-20-70 150 20 70 7 - 10 1080 100 260 230 267.54
CDCA-200-00-40 200 0 40 8 - 12 1680 100 310 240 236
CDCA-200-00-60 200 0 60 8 - 12 1680 100 310 240 256
CDCA-250-00-40 250 0 40 10 - 15 1620 130 360 270 246
CDCA-250-00-60 250 0 60 10 - 15 1620 130 360 270 266
CDCA-300-00-40 300 0 40 12 - 18 1620 130 410 270 246
CDCA-300-00-60 300 0 60 12 - 18 1620 130 410 270 266
CDCA-400-00-60 400 0 60 14 - 21 2160 150 525 250 356
CDCA-500-00-60 500 0 60 14 - 21 2160 150 625 250 361
CDCA-600-00-60 600 0 60 14 - 21 2160 150 725 250 361
