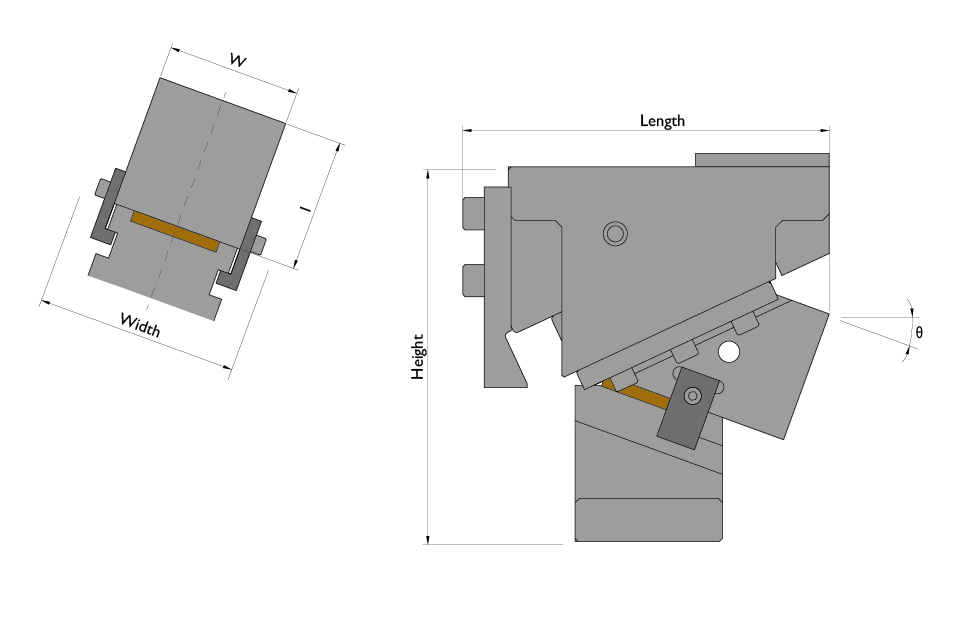

Order No. W
(mm)		 θ
(º)		 Stroke
(mm)		 Working force
(Tnf)		 Spring force
(kgf)		 I
(mm)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 PDF 3D
CACU-65-00 65 0 26.9 2 - 4 109 80 115 210 209.94
CACU-65-05 65 5 27 2 - 4 116 90 115 210 217.01
CACU-65-10 65 10 31.6 2 - 4 116 80 115 210 220.8
CACU-65-15 65 15 32.2 2 - 4 116 90 115 210 227.77
CACU-65-20 65 20 33.8 2 - 4 116 80 115 210 222.1
CACU-65-25 65 25 35 2 - 4 116 90 115 210 228.75
CACU-65-30 65 30 33.5 2 - 5 116 80 115 210 217.63
CACU-65-35 65 35 35.4 2 - 5 116 90 115 210 223.76
CACU-65-40 65 40 42.9 2 - 5 116 80 115 210 212.72
CACU-65-45 65 45 46.5 2 - 5 116 90 115 210 218.13
CACU-65-50 65 50 54.5 3 - 6 116 90 115 210 214
CACU-65-55 65 55 43.6 3 - 6 106 100 115 210 214
CACU-65-60 65 60 50 3 - 6 106 100 115 210 214
CACU-65-65 65 65 47.3 3 - 6 91 110 115 210 214
CACU-65-70 65 70 58.5 3 - 6 91 110 115 210 214
CACU-100-00 100 0 28.3 4 - 9 504 100 160 280 273
CACU-100-05 100 5 28.4 4 - 9 627 140 160 280 273
CACU-100-10 100 10 33.3 4 - 9 627 100 160 280 273
CACU-100-15 100 15 33.9 4 - 9 627 140 160 280 287.35
CACU-100-20 100 20 30.9 4 - 9 608 100 160 280 274
CACU-100-25 100 25 32 4 - 9 608 140 160 280 287.26
CACU-100-30 100 30 33.5 4 - 9 608 120 160 280 273
CACU-100-35 100 35 35.4 4 - 9 572 140 160 280 285.34
CACU-100-40 100 40 39 4 - 9 572 120 160 280 273
CACU-100-45 100 45 42.3 4 - 9 572 140 160 280 280.41
CACU-100-50 100 50 46.7 5 - 10 572 140 160 280 272
CACU-100-55 100 55 52.3 5 - 10 572 140 160 280 272
CACU-100-60 100 60 60 5 - 10 572 140 160 280 272
CACU-100-65 100 65 47.3 5 - 10 559 140 160 280 272
CACU-100-70 100 70 58.5 5 - 10 559 140 160 280 272
CACU-200-00 200 0 28.3 10 - 20 2297 100 260 280 273
CACU-200-05 200 5 28.4 10 - 20 2506 130 260 280 273
CACU-200-10 200 10 33.3 10 - 20 2506 100 260 280 273
CACU-200-15 200 15 33.9 10 - 20 2506 130 260 280 287.35
CACU-200-20 200 20 30.9 10 - 20 2432 100 260 280 274
CACU-200-25 200 25 32 10 - 20 2432 130 260 280 287.27
CACU-200-30 200 30 33.5 10 - 20 2289 120 260 280 273
CACU-200-35 200 35 35.4 10 - 20 2289 140 260 280 285.34
CACU-200-40 200 40 39 10 - 20 2289 120 260 280 273
CACU-200-45 200 45 42.3 10 - 20 2289 140 260 280 280.41
CACU-200-50 200 50 46.7 12 - 24 2289 140 260 280 272
CACU-200-55 200 55 52.3 12 - 24 2289 140 260 280 272
CACU-200-60 200 60 60 12 - 24 2289 140 260 280 272
CACU-200-65 200 65 47.3 12 - 24 2236 140 260 280 272
CACU-200-70 200 70 58.5 12 - 24 2236 140 260 280 272
