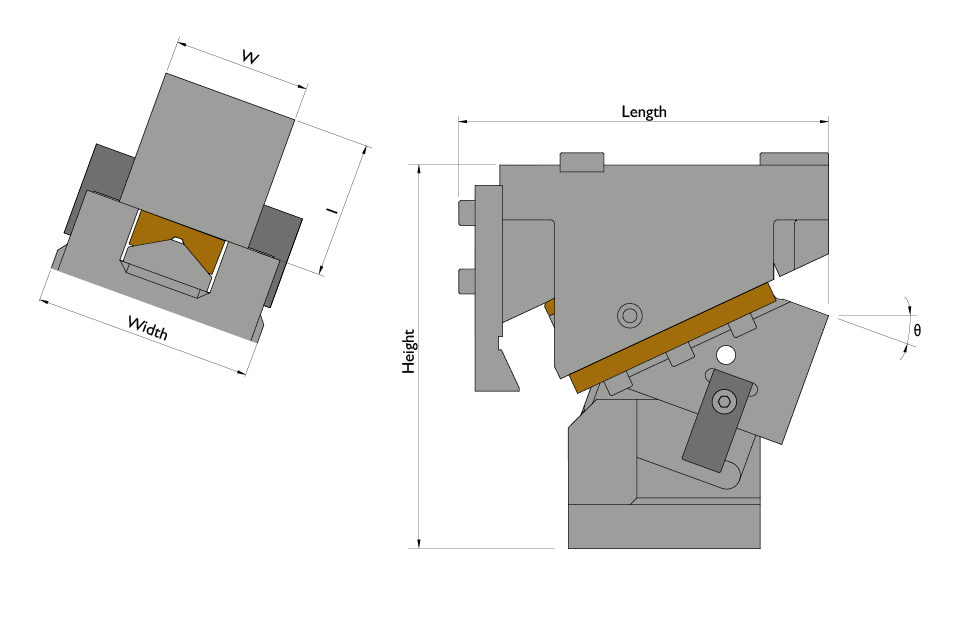

Order No. W
(mm)		 θ
(º)		 Stroke
(mm)		 Working force
(Tnf)		 Spring force
(kgf)		 I
(mm)		 Width
(mm)		 Height
(mm)		 Length
(mm)		 PDF 3D
CACK-65-00 65 0 26.9 2 - 4 550 80 115 210 209.94
CACK-65-05 65 5 27 2 - 4 550 90 115 210 217.01
CACK-65-10 65 10 31.6 2 - 4 550 80 115 210 220.8
CACK-65-15 65 15 32.2 2 - 4 550 90 115 210 227.77
CACK-65-20 65 20 33.8 2 - 4 550 80 115 210 222.1
CACK-65-25 65 25 35 2 - 4 550 90 115 210 228.75
CACK-65-30 65 30 33.5 2 - 4 550 80 115 210 217.63
CACK-65-35 65 35 35.4 2 - 4 550 90 115 210 223.76
CACK-65-40 65 40 42.9 2 - 4 550 80 115 210 212.72
CACK-65-45 65 45 46.5 2 - 4 550 90 115 210 218.13
CACK-65-50 65 50 54.5 2 - 4 550 90 115 210 214
CACK-65-55 65 55 43.6 2 - 4 530 100 115 210 214
CACK-65-60 65 60 50 2 - 4 530 100 115 210 214
CACK-65-65 65 65 47.3 2 - 4 530 110 115 210 214
CACK-65-70 65 70 58.5 2 - 4 530 110 115 210 214
CACK-100-00 100 0 28.3 4 - 9 1120 100 160 280 273
CACK-100-05 100 5 28.4 4 - 9 1120 140 160 280 273
CACK-100-10 100 10 33.3 4 - 9 1120 100 160 280 273
CACK-100-15 100 15 33.9 4 - 9 1100 140 160 280 287.35
CACK-100-20 100 20 30.9 4 - 9 1100 100 160 280 274
CACK-100-25 100 25 32 4 - 9 1100 140 160 280 287.26
CACK-100-30 100 30 33.5 4 - 9 1100 120 160 280 273
CACK-100-35 100 35 35.4 4 - 9 1100 140 160 280 285.34
CACK-100-40 100 40 39 4 - 9 1100 120 160 280 273
CACK-100-45 100 45 42.3 4 - 9 1100 140 160 280 280.41
CACK-100-50 100 50 46.7 4 - 9 1100 140 160 280 272
CACK-100-55 100 55 52.3 4 - 9 1100 140 160 280 272
CACK-100-60 100 60 60 4 - 9 1060 140 160 280 272
CACK-100-65 100 65 47.3 4 - 9 1060 140 160 280 272
CACK-100-70 100 70 58.5 4 - 9 1060 140 160 280 272
CACK-200-00 200 0 28.3 9 - 19 2240 100 260 280 273
CACK-200-05 200 5 28.4 9 - 19 2240 130 260 280 273
CACK-200-10 200 10 33.3 9 - 19 2240 100 260 280 273
CACK-200-15 200 15 33.9 9 - 19 2200 130 260 280 287.35
CACK-200-20 200 20 30.9 9 - 19 2200 100 260 280 274
CACK-200-25 200 25 32 9 - 19 2200 130 260 280 287.27
CACK-200-30 200 30 33.5 9 - 19 2200 120 260 280 273
CACK-200-35 200 35 35.4 9 - 19 2200 140 260 280 285.34
CACK-200-40 200 40 39 9 - 19 2200 120 260 280 273
CACK-200-45 200 45 42.3 9 - 19 2200 140 260 280 280.41
CACK-200-50 200 50 46.7 9 - 19 2200 140 260 280 272
CACK-200-55 200 55 52.3 9 - 19 2200 140 260 280 272
CACK-200-60 200 60 60 9 - 19 2200 140 260 280 272
CACK-200-65 200 65 47.3 9 - 19 2120 140 260 280 272
CACK-200-70 200 70 58.5 9 - 19 2120 140 260 280 272
